Page Title Bracket The iMINI Series single-use data loggers track temperatures, humidity, alarm thresholds and/or data access. iMINI Series
Home>Single-Use>iMINI Series
iMINI Series2024-06-06T10:08:10+00:00

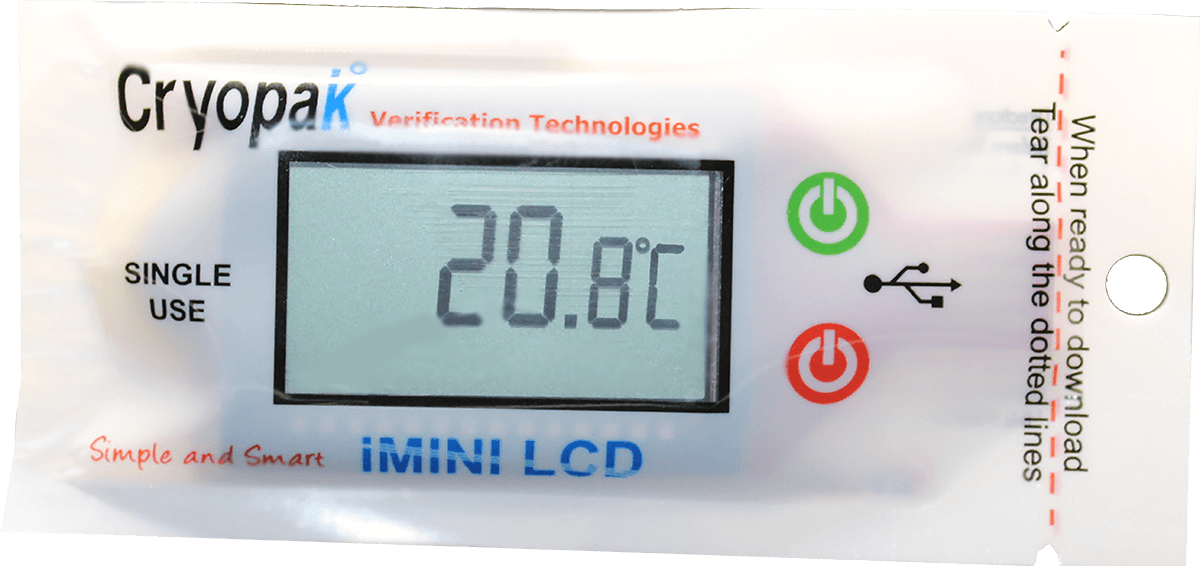

The iMINI LCD is a single-trip temperature logger with an LCD screen for easy viewing of temperature data. The advanced monitoring technology in this product provides higher accuracy when detecting changes in shipment temperature. Its versatile capabilities make it ideal to use within the food and pharmaceutical industries.

FEATURES & SPECIFICATIONS

  • Single use logger with easy to read LCD screen
  • Pre-programmed to customer specifications
  • High accuracy
  • 21 CFR compliance
  • Large memory capacity
  • Compact profile
  • Waterproof pouch
  • 4 alarm thresholds
DescriptionSpecifications
Size68 x 37 x 5 mm (without sleeve)
81 x 52 x 5 mm (with sleeve)
Weight23g
Memory Options 8K, 7808 readings
Program Interval 5 seconds to 17 hours
Sensor Location Internal
Temperature Range -40°C to 80°C (-40°F to 176°F)
Temperature Accuracy ±0.5⁰C (-40⁰C to -10⁰C) / ±1⁰F (-40⁰F to +14⁰F) ±0.3⁰C (-10⁰C to +80⁰C) / ±0.6⁰F (+14⁰F to +176⁰F)

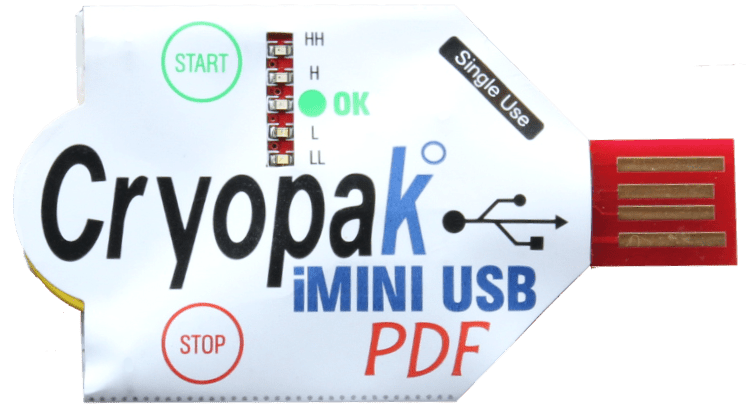

The iMINI USB PDF single-trip data logger with plug & play technology generates a comprehensive PDF report, or Excel CSV file without the need for proprietary software or interface. This user-friendly temperature recorder comes pre-programmed with 4-day, 7-day or 10-day duration, or any custom configuration including temperature, interval and start delay.

FEATURES & SPECIFICATIONS

  • Plug & Play single trip data logger
  • No special software required; data automatically opens as a PDF
  • Pre-programmed to customer specifications
  • Compact profile; weights less than 14g
  • Large memory capacity
  • Contained in waterproof pouch
  • Large memory capacity; 7928 readings
  • 21 CFR Part 11 Compliant
DescriptionSpecifications
Size68x37x5mm (without sleeve)
81x52x5mm (with sleeve)
Weight14g
Memory Options 8K, 7928 readings
Program Interval 5 seconds to 17 hours
Sensor Location Internal
Temperature Range -40°C to 80°C (-40°F to 176°F)
Temperature Accuracy ±0.5⁰C (-40⁰C to -10⁰C) / ±1⁰F (-40⁰F to +14⁰F) ±0.3⁰C (-10⁰C to +80⁰C) / ±0.6⁰F (+14⁰F to +176⁰F)

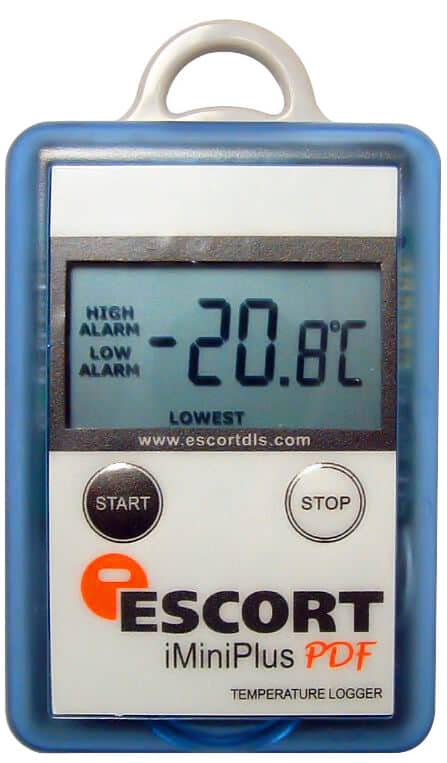

The iMINI Plus PDF will generate a comprehensive PDF report making it the ideal data logger for shipments where proprietary software is not available.

FEATURES & SPECIFICATIONS

  • Download data with USB cable
  • Multiple alarm settings
  • Report can be customized to display graph, list of readings and alarm summary
  • Book marking and continuous logging mode
  • Can be programmed in Celsius or Fahrenheit
DescriptionSpecifications
Product Code(s)MU-IN-D-16-L (Internal sensor)
MU-OE-D-16-L (External sensor)
MU-ST-D-8-L (Single Trip Internal sensor)
Size83mm x 57mm x 17mm (excluding lug)
Weight70g (including battery)
Memory Options Single-Use, 8K, 8,048 readings
Multi-Use, 16K, 16240 readings
Sampling Frequency5 seconds to 18 hours
Temperature Range -40 °C to +70 °C (-40 °F to +158 °F)
Temperature Accuracy ±0.5 °C (-40 °C to -10 °C), ±1 °F (-40 °F to +14 °F)
±0.3 °C (-10 °C to +70 °C), ±0.6 °F (+14 °F to +158 °F)

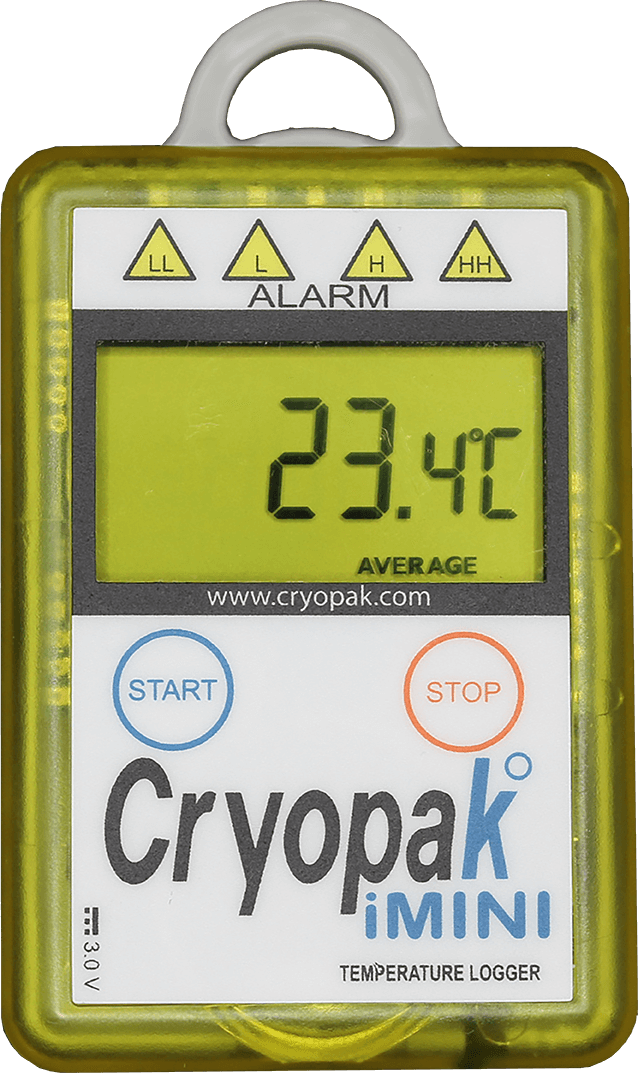

The iMINI temperature data logger offers enhanced features and updated software to improve the monitoring of temperature sensitive products. The iMINI was developed to encompass a full spectrum of uses from food processing and warehousing, to blood storage and transport, to biotech and clinical trials, among others.

Required accessories: USB Mini to USB interface-Model #CB-USB2-MINI5P (Sold Separately)
Console Plus Software- Model # EA-SWP-PLUS (available as free download or option to purchase disc)

MX Series of products require a USB cable to connect to the PC; one cable needed per location for downloading and programming.

FEATURES & SPECIFICATIONS

  • Available in both Single Use & Multiuse configurations
  • Economical cold chain monitoring solution
  • Multiple alarm thresholds
  • Remote data access
  • USB nonproprietary interface cable
  • Customer replaceable battery
  • Can be programmed in either Celsius or Fahrenheit
DescriptionSpecifications
Size83mm x 57mm x 18mm
Weight70g (including battery)
Memory Options 8K, 7807 readings
Program Interval 5 seconds-17 hours
Sensor Location Internal
Temperature Range -40°C to 80°C (-40°F to 176°F)
Temperature Accuracy ±0.5⁰C (-40⁰C to -10⁰C) / ±1⁰F (-40⁰F to +14⁰F) ±0.3⁰C (-10⁰C to +80⁰C) / ±0.6⁰F (+14⁰F to +176⁰F)
Humidity Accuracy ±3% (10%-90%} ±4% (<10% and > 90%}

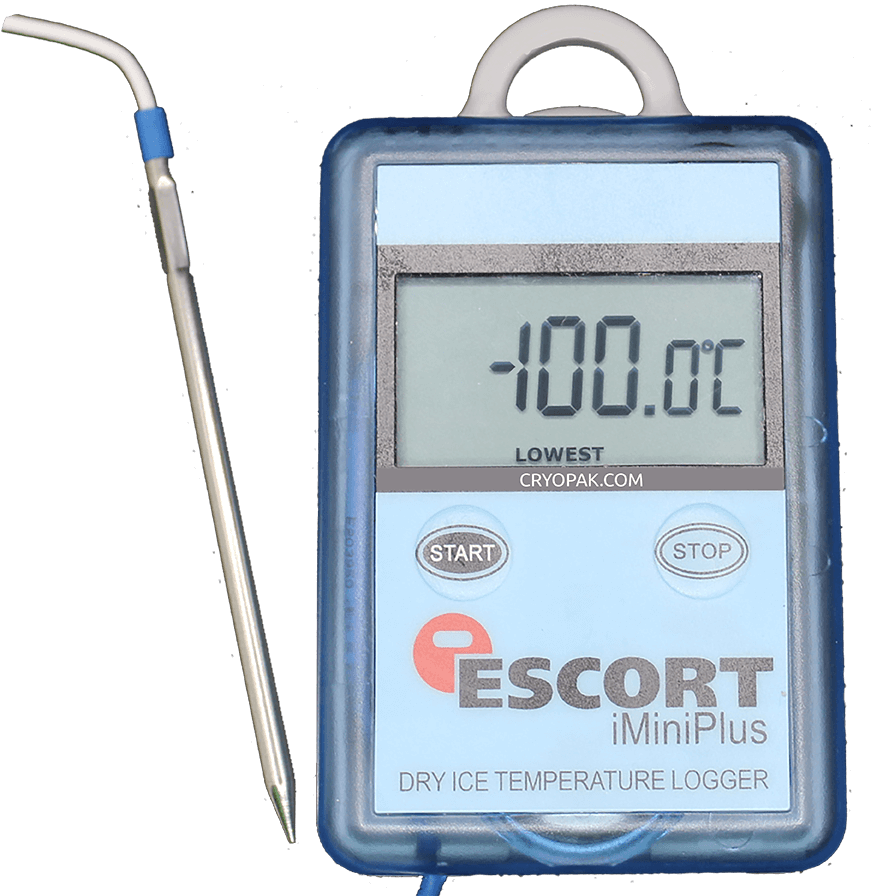

The iMini Plus Dry Ice Logger is capable of measuring and recording extreme temperatures from -100°C to 40°C. It is the ideal solution for ensuring safe transport and storage of perishables held in dry ice, ranging from pharmaceuticals, biologicals, human/animal tissue, clinical trials, enzymes, serums and/or food and beverage, among others.

FEATURES & SPECIFICATIONS

  • One meter Teflon cable connecting the stainless steel temperature probe to the data logger
  • Start and stop buttons
  • Data tagging available
  • Large multifunction LCD display
  • Great memory
DescriptionSpecifications
Size83mm x 57mm x 17mm
Weight70g
Memory Options 8K, 8048 readings
Program Interval 5 seconds to 18 hours
Sensor Location External
Temperature Range -100°C to 40°C (-148°F to 104°F)
Temperature Accuracy ±1.0⁰C (-100⁰C to -80⁰C) / ±1.8⁰F (-148⁰F to -112⁰F) ±0.7⁰C (-79⁰C to -10⁰C) / ±1.3⁰F (-111⁰F to 14⁰F) ±0.6⁰C (-9⁰C to 40⁰C) / ±1.0⁰F (15⁰F to 104⁰F)
